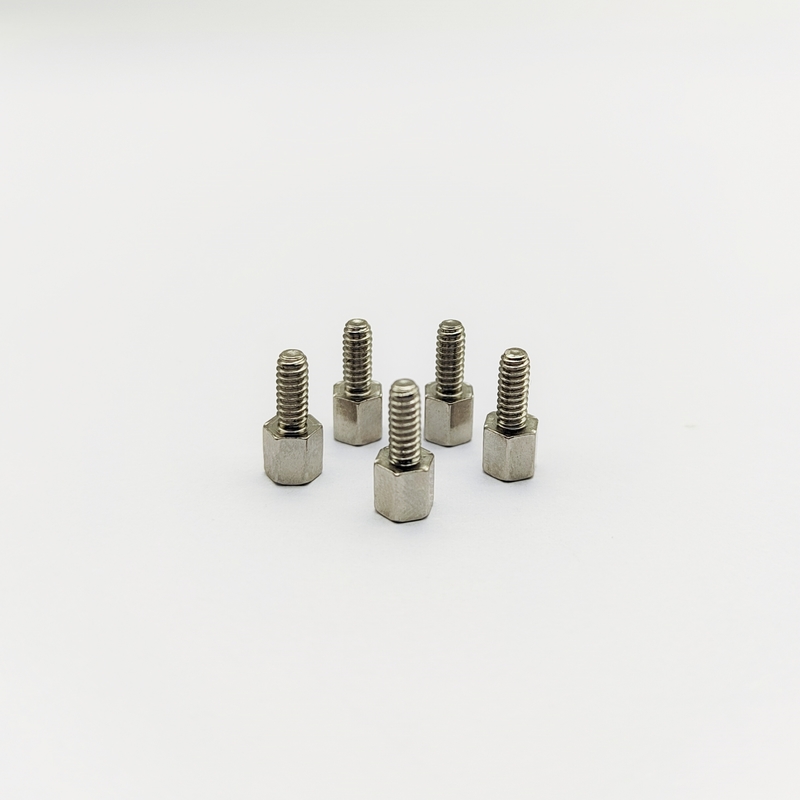

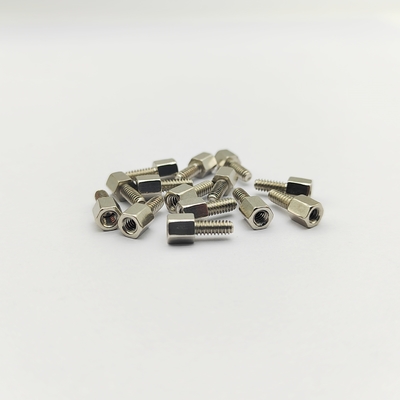

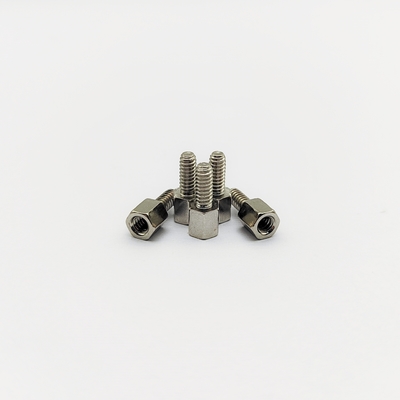

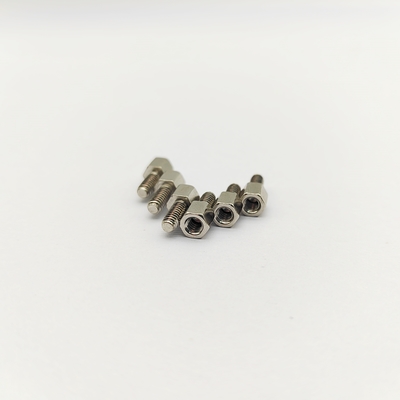

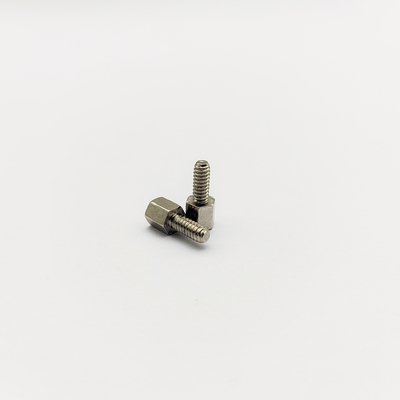

316 Stainless Steel #4-40 Hex Standoff Screw 12mm Electropolished
পণ্যের বিবরণ:
| উৎপত্তি স্থল: | চীন |
| পরিচিতিমুলক নাম: | guanbiao |
| সাক্ষ্যদান: | ISO9001 |
| মডেল নম্বার: | কাস্টমাইজযোগ্য |
| নথি: | guanbiao hardware PPT(new)P...DF.pdf |
প্রদান:
| ন্যূনতম চাহিদার পরিমাণ: | 50000 |
|---|---|
| মূল্য: | negotiable |
| প্যাকেজিং বিবরণ: | প্লাস্টিক ব্যাগ + কার্টন + প্যালেট |
| ডেলিভারি সময়: | 15-20 কাজের দিন |
| পরিশোধের শর্ত: | টি/টি |
| যোগানের ক্ষমতা: | 5000000 |
|
বিস্তারিত তথ্য |
|||
| পণ্য প্রয়োগ: | সামুদ্রিক ও অফশোর ইলেকট্রনিক্স | থ্রেড: | পুরুষ-মহিলা |
|---|---|---|---|
| নেতৃত্ব সময়: | 15 ~ 20 কার্যদিবস | ফিনশ: | ইলেক্ট্রোপলিশিং ** (আরএ <0.4 মিমি, উচ্চতর ফিনিস) |
| উপাদান: | A4-80 / 316 স্টেইনলেস স্টি | সহনশীল: | +/- 0.05 মিমি |
| জারা প্রতিরোধের: | মেরিন (সি 5-এম) এবং রাসায়নিক পরিবেশের জন্য দুর্দান্ত | শক্তি: | উচ্চ |
| স্পেসিফিকেশন: | আইএসও | পরিমাণ: | 1000 এর প্যাক |
| প্রকার: | স্ট্যান্ডঅফ স্ক্রু | নমুনা: | বিনামূল্যে নমুনা |
| ইনস্টল করা সহজ: | হ্যাঁ | মোট দৈর্ঘ্য: | 12 মিমি |
| বিশেষভাবে তুলে ধরা: | 316 stainless steel standoff screw,electropolished hex standoff screw,4-40 standoff screw 12mm |
||
পণ্যের বর্ণনা
#4-40 Hex Standoff Screw - 316 Stainless Steel - Electropolished
Premium fasteners for medical, marine, and demanding industrial applications
Product Attributes
| Attribute | Value |
|---|---|
| Product Application | Marine & Offshore Electronics |
| Thread | Male-female |
| Lead Time | 15~20 working days |
| Finish | Electropolishing (Ra < 0.4 µm, Superior finish) |
| Material | A4-80 / 316 Stainless Steel |
| Tolerance | +/- 0.05mm |
| Corrosion Resistance | Excellent for Marine (C5-M) & Chemical environments |
| Strength | High |
| Specification | ISO |
| Quantity | Pack of 1000 |
| Type | Standoff Screws |
| Samples | Free samples available |
| Easy To Install | Yes |
| Total Length | 12 mm |
Product Description
Engineered for the most demanding environments, our premium #4-40 Hex Standoff Screws are manufactured from A4/316 stainless steel and feature an electropolished finish. This combination provides exceptional resistance to harsh chemicals, frequent sterilization, salt spray, and corrosive atmospheres.
Technical Specifications
| Specification | Value |
|---|---|
| Thread Standard | #4-40 UNF |
| Thread Diameter | Major Dia: ~0.112" / 2.84mm |
| Hex Size (AF) | 4.75 mm (3/16") or Custom |
| Total Length (L) | 12 mm (Common, Fully Customizable) |
| Male Thread Length (L_m) | 7 mm (Common, Fully Customizable) |
| Female Thread Depth (L_f) | ~5 mm (L - L_m, Fully Customizable) |
| Material | A4-80 / 316 Stainless Steel |
| Surface Treatment | Electropolishing (Ra < 0.4 µm, Superior finish) |
| Corrosion Resistance | Excellent for Marine (C5-M) & Chemical environments |
| Customization | All dimensions and thread combinations available |
Primary Uses & Applications
- Medical Devices: Assembly of surgical instruments, diagnostic equipment, and implantable device packaging where cleanliness and corrosion resistance are paramount.
- Laboratory & Analytical Equipment: Spacing components in spectrometers, DNA sequencers, and automated fluid handling systems exposed to chemicals.
- Marine & Offshore Electronics: Used in navigation systems, underwater sensors, and communication devices on boats and platforms.
- Food & Beverage Processing: Equipment assembly where cleanability and resistance to corrosive cleaning agents are required.
- Aerospace & Defense: Avionics and critical electronic systems where reliability in harsh conditions is essential.
How to Use
- Clean Environment: For medical and high-purity applications, install in a controlled, clean environment.
- Installation: Use a clean, 3/16 inch hex wrench. Carefully screw the male thread into the receiving tapped hole. The electropolished finish reduces friction.
- Final Assembly: Use a matching #4-40 stainless steel screw to secure the component to the female thread of the standoff.
- Torque Control: For consistent and reliable results, especially in critical applications, use a torque screwdriver set to the recommended value for #4-40 screws in stainless steel.
- Custom Solutions: We can work with you to create standoffs with specific lengths and thread depths to solve unique design challenges in your product.
Our Advantages
- More than 20 years of screw production experience and non-standard screw custom development experience, providing cost-effective solutions for your fastener supply chain.
- Precise production equipment from Taiwan to manufacture precision screws and hardware accessories, with free sample testing for compatibility verification.
- Complete quality management system with multiple strict monitoring checks for each batch of products.
- Dedicated account management for seamless collaboration and system-supporting services.
Support and Services
Our team of knowledgeable professionals provides comprehensive support for all aspects of our hex standoff screws, including:
- Selection advice to ensure the right type and size for your project
- Guidance on proper installation techniques
- Detailed product specifications and material safety data sheets
- Step-by-step installation guides and troubleshooting assistance
- Maintenance tips and best practices to extend product life
Packing and Shipping
- Packaged in durable, moisture-resistant plastic bags within sturdy cardboard boxes
- Secure packing materials to prevent movement during transit
- Clear labeling with product information for easy identification
- Palletized and shrink-wrapped for bulk orders
- Reliable courier services with tracking information provided
Custom Solutions
Our factory accepts customized drawings and specifications. Contact us to discuss your specific requirements for technical certifications or special parameters.
